Product Introduction

This test chamber conforms to IEC 60529:1989 + A1:1999 + A2:2013 Clause 14.2.9, DIN40050‑9 and ISO20653. It verifies the IP degrees of protection of enclosures for road vehicle electrical equipment, testing protection against solid foreign objects including dust and water ingress.

It is used to inspect equipment enclosures for IP supplementary code tests, and performs high temperature and high pressure waterproof testing for electrical and automotive components, especially EV parts.

Test samples include products requiring IPX9 grade waterproof test, such as automotive, motorcycle, EV, electrical and electronic components.

Material and Structural Features

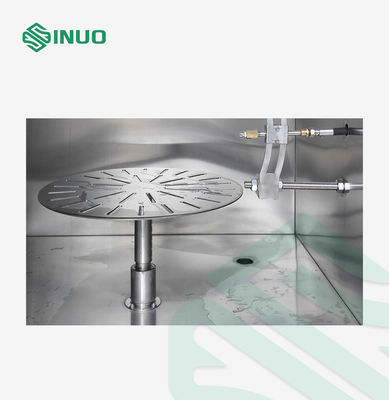

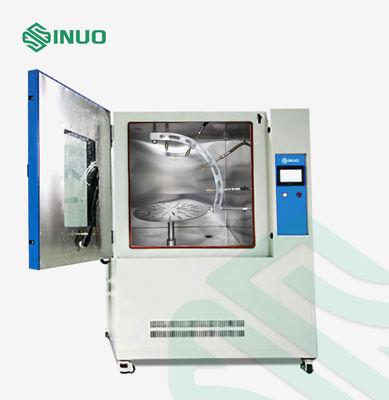

The outer enclosure adopts sprayed high‑quality steel plate, and the inner chamber is made of SUS304 stainless steel. The upper part of the chamber is the test area and control section. The lower part is equipped with imported Italian high‑pressure pump, solenoid valves, SUS304 stainless steel constant temperature tank and backwater tank, turntable motor and deceleration transmission mechanism.

All control settings: water temperature, nozzle control, pressure, test time and flow parameters are controlled by PLC and set via a 7‑inch touch screen.

Technical Parameters

Key Features

1. . Designed for IPX9 waterproof verification of EV electrical enclosures and road vehicle electronic assemblies, complying with ISO20653 automotive IP protection standard.
2. . Equipped with imported Italian high-pressure pump and turntable motor to deliver stable high-temperature high-pressure water jet for EV component reliability tests.
3. . PLC + 7-inch touch screen control. Operators can preset water temperature, jet pressure, angle sequence and test cycles for EV part certification.

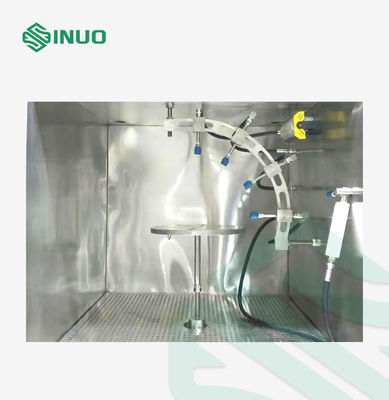

4. . nozzles support programmable sequential multi-angle spraying, fully meeting ISO20653 IPX9 test requirements for EV charging components, vehicle controllers and on-board electrical housings.
5.   SUS304 stainless steel inner chamber and water tanks resist corrosion from long-term hot water testing.
6.   Closed water circulation system reduces water consumption for continuous batch testing of EV spare parts.

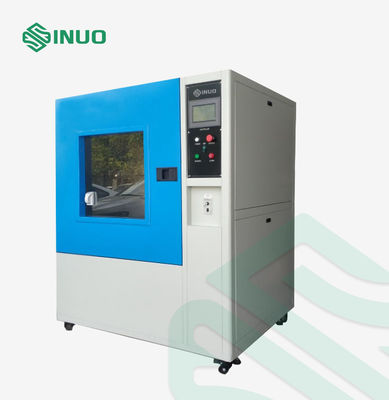

7.   Tempered glass door with wiper allows real-time visual inspection during EV enclosure waterproof test.
