IEC 62196 EV Plug and Socket Dimensional Inspection Gauges for EV Charging Systems

Product Overview

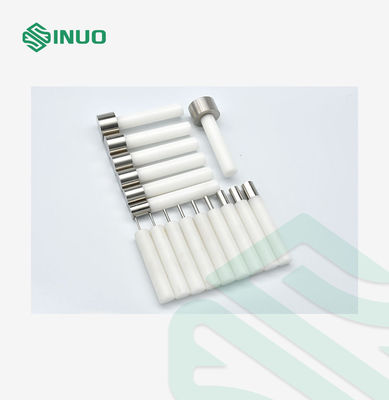

Designed for dimensional inspection of electric vehicle (EV) charging plugs and socket-outlets, this gauge set supports testing in accordance with IEC 62196-3:2026, Clause 13, and IEC 62196-1:2025, Clause 13.2.1, Figure 11.

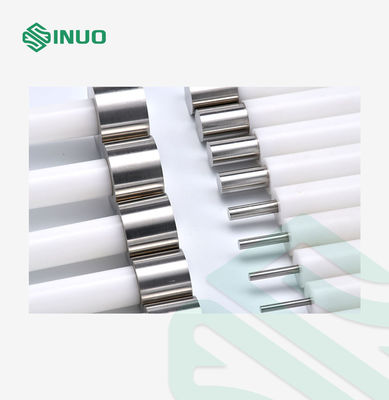

The set contains 16 individual gauges manufactured from die steel, with dimensions specified in the applicable dimensional table. It is suitable for EV charging connector manufacturers, electrical safety testing laboratories, quality inspection departments, and conformity assessment organizations that require standardized dimensional verification tools.

These EV connector inspection gauges help users assess specified dimensional characteristics of charging interfaces during product development, quality control, and compliance testing.

Key Features

• Standards-based inspection: Designed for applications specified in IEC 62196-3:2026 Clause 13 and IEC 62196-1:2025 Clause 13.2.1, Figure 11.

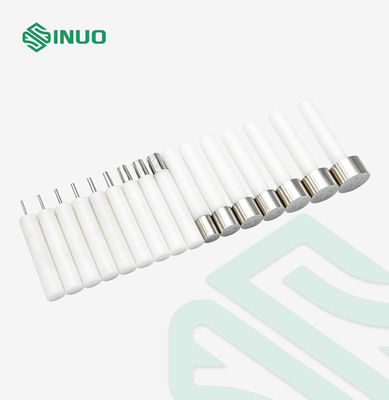

• Complete 16-piece set: Supplied as a set of 16 gauges for the specified inspection requirements.

• Die steel construction: Manufactured from die steel for use in dimensional inspection applications.

• Multiple dimensional specifications: Gauge sizes are defined by the applicable dimensional table.

• Wide range of applications: Suitable for EV charging plug and socket manufacturers, electrical testing laboratories, and EV charging equipment quality control.

The sizes are according to the following table:

Why Choose Sinuo Testing Equipment?

Sinuo Testing Equipment Co., Limited supplies electrical safety testing equipment and standards-related inspection solutions for manufacturers and laboratories worldwide. We support customers seeking testing equipment for EV charging connectors, plugs, socket-outlets, and other electrical products.

For the appropriate gauge configuration and dimensional requirements, please contact our team with your application details and the relevant standards.

Contact Sinuo for product specifications, a quotation, and technical assistance.
