DO-160G Shower Head Nozzle With Digital Flowmeter For Civil Aviation Electronics

Name: DO-160G Shower Head Nozzle With Digital Flowmeter For Civil Aviation Electronics
Brand: Sinuo Testing Equipment Co. , Limited
SKU: SN446G
Availability: InStock

Brand Name:	Sinuo
Model Number:	SN446G
MOQ:	1
Payment Terms:	T/T
Supply Ability:	10 Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Large Hole Diagonal Hole Angle:

2*20°

Small Hole Diagonal Hole Angle:

2*30°

Material:

Brass

Model:

SN446G

Complied Standards:

DO-160G

Water Spray Hole Diameter:

4*Ф2.31mm, 4*Ф1.60mm

Packaging Details:

Export packing

Supply Ability:

10 Sets Per Month

Highlight:

Digital Flowmeter Shower Head Nozzle

Civil Aviation Electronics Shower Head Nozzle

DO-160G Shower Head Nozzle

Product Description

DO-160G Shower Head Nozzle with Digital Flowmeter for Civil Aviation Electronics

Complied Standards & Clauses

The nozzle complies with CA DO-160G Section 10 Cat R, Spray Proof test, fig 10.2. shower head nozzle

Product Overview

This test is used to determine whether the equipment can withstand the effects of liquid water sprayed or dripped onto it, or the effects of water condensation. This test is not used to verify the performance of hermetic sealing equipment. Therefore, it can be considered that the airtight equipment has met all waterproof requirements and no further testing is required. A device shall be considered hermetically sealed if it is permanently sealed and airtight.

Technical Parameters

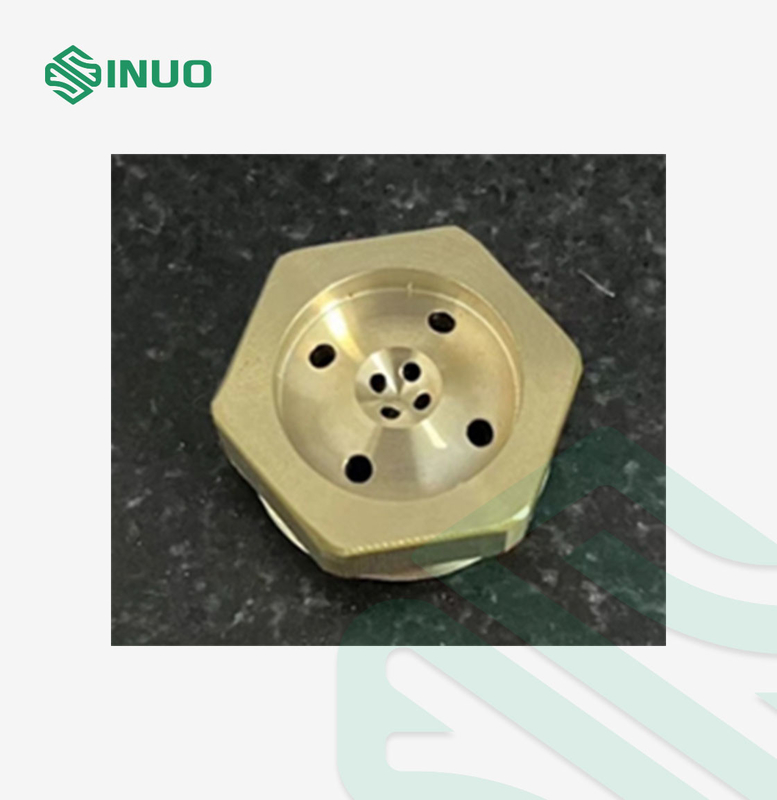

Water spray hole diameter	4Ф2.31mm, 4Ф1.60mm;
Large hole diagonal hole angle	2*20°;
Small hole diagonal hole angle	2*30°;
Material	brass;

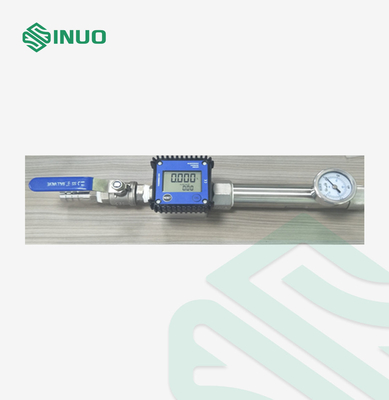

Accessories	Equipped with electronic flow meter, which can display instantaneous flow and real-time total flow (adjusted by valve)
