| Brand Name: | Sinuo |
| Model Number: | SN552D-864L |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 10 Sets Per Month |

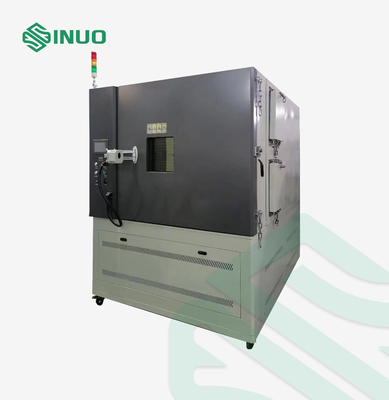

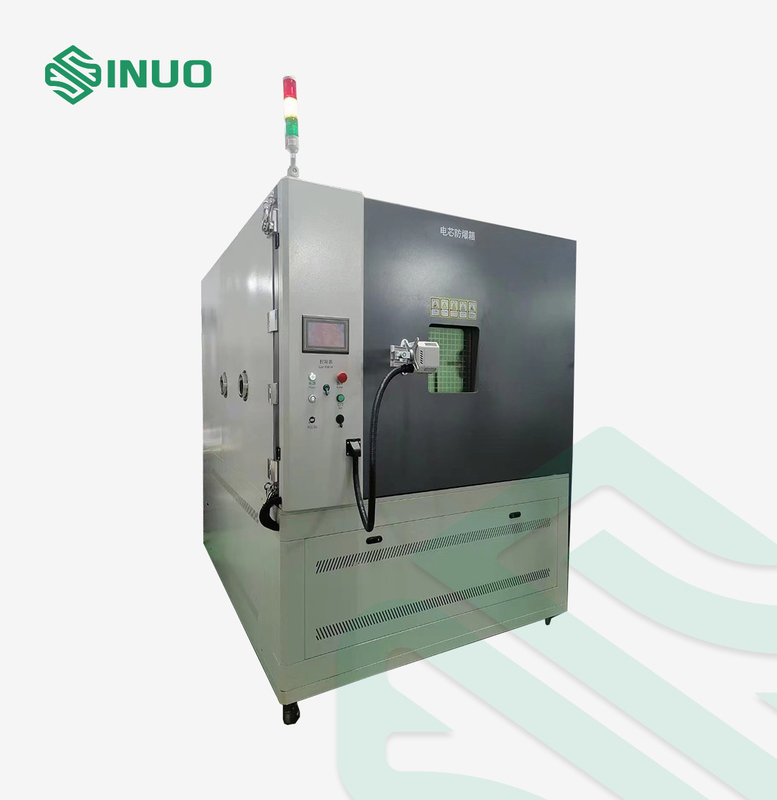

UL 1662 Battery Explosion-proof Test Chamber With Temperature Control
Complied Standards & Clauses
Conforms to UL 1662:2012, UL 2056: 2012, UN38.3(2012), IEC62133-2012, IEC 62281: 2006, IEC 60086: 2007.
Product Overview
Application: This battery explosion-proof box is used to prevent battery explosion or combustion from causing unnecessary harm to test personnel during overcharge, over discharge or other tests. The entire body is made of steel, with strong texture and good explosion-proof effect.
Technical Parameters

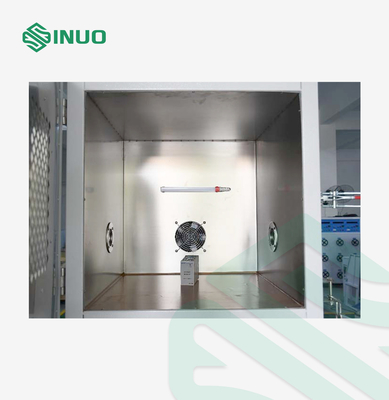

| Work chamber size | W 900×H 800×D 1200mm, internal volume 864L Meets battery testing requirements |
| Outer box size | Approximately L1400*W1850*H2050mm |
| Temperature range | 0℃~85℃ (full range controllable, adjustable control accuracy ±0.01℃) |
| Temperature fluctuation | ≤±0.5℃ |
| Temperature deviation | ≤±1.5℃ |
| Temperature uniformity | ≤1.5℃ |
| Heating rate | 0℃~85℃, full range average 3℃/min non-linear (no load) |
| Cooling rate | 85℃~0℃, full range average 1℃/min non-linear (no load) |
| Structural requirements | The equipment is integrally formed. The explosion-proof strength of the box meets the explosion strength of a module consisting of two 325Ah battery cells connected in series. Effective explosion-proof pressure relief design is carried out. The steel plate material is treated with rust-proof insulation and is effectively flame-retardant. Structural design drawings are provided. Explosion-proof chains are installed to prevent the box door from being opened. |
| Noise index | ≤70dB (measured at 1m and 1.5m from the device in the forward direction) |
| Box bottom | Equipped with 4 universal wheels and 4 fixed feet, easy to move and stable |
| Exhaust system | Each chamber can be controlled independently. The smoke generated by the test sample can be automatically detected and alarmed and the smoke can be discharged through the pipe. The discharge volume needs to be provided. |
Video surveillance | The test area is equipped with a high-definition video surveillance system and can be remotely controlled; Color video; Pixels ≥ 5 million pixels; Video acquisition resolution: PAL: D1 (704x576) / CIF (352x288) / QCIF (176x144), and multimedia format (320x240); Horizontal clarity: 700TVL; Recording and playback speed: 25 frames/second per video channel (PAL); Video memory adds a mobile hard disk, and the video surveillance system is compatible with the mobile hard disk for storage to ensure data accuracy. (If the surveillance system needs to be set up in an explosion area, the surveillance system needs to have explosion-proof function, and the camera can still monitor clear images after the explosion, which will not affect the next use) (optional) |

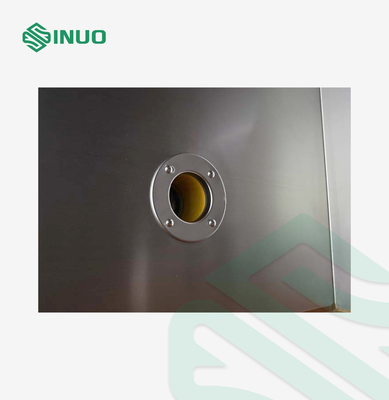

Details
