High Energy Pendulum Hammer Impact Test Apparatus For Charging Station

High Energy Pendulum Hammer Impact Test Apparatus For Charging Station

Brand Name:	Sinuo
Model Number:	SN2122A
MOQ:	1
Payment Terms:	T/T
Supply Ability:	10 Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Striking Elements Material:

Steel

Height Of Fall:

0-500mm

Pendulum Tube:

1000mm

Impact Stroke:

0-1500mm

Lifting Mode:

Electrical Mode

Release Method:

Electromagnetic Release

Packaging Details:

Export packing

Supply Ability:

10 Sets Per Month

Highlight:

Pendulum Hammer Impact Test Apparatus

High Energy Hammer Impact Test Apparatus

Product Description

High Energy Pendulum Hammer Impact Test Apparatus for Charging Station

Complied Standards & Clauses

It conforms to standards:

IEC60068-2-75:2014 “Environment testing for electric and electronic products Part2: Test methods -Test Eh: Hammer tests IDT”

IEC62262:2002 “Degrees of protection provided by enclosures for electrical equipment against external mechanical impacts (IK code)”

It is required by IEC60335-2-25 clause 22.119.3, etc.

Product Overview

This test apparatus is used for the impact resistance test of household and similar electronic and electrical products and their accessories such as plugs and sockets and wall mounted mounting boxes, screw glands, covers, switches, lamps, etc., to assess the safety performance and strength level of the products.

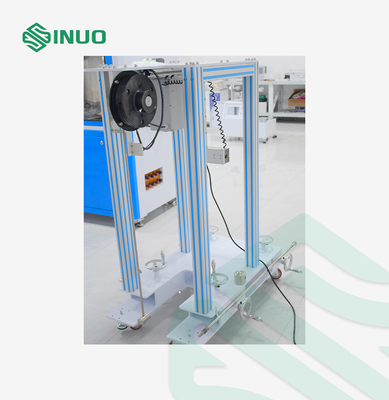

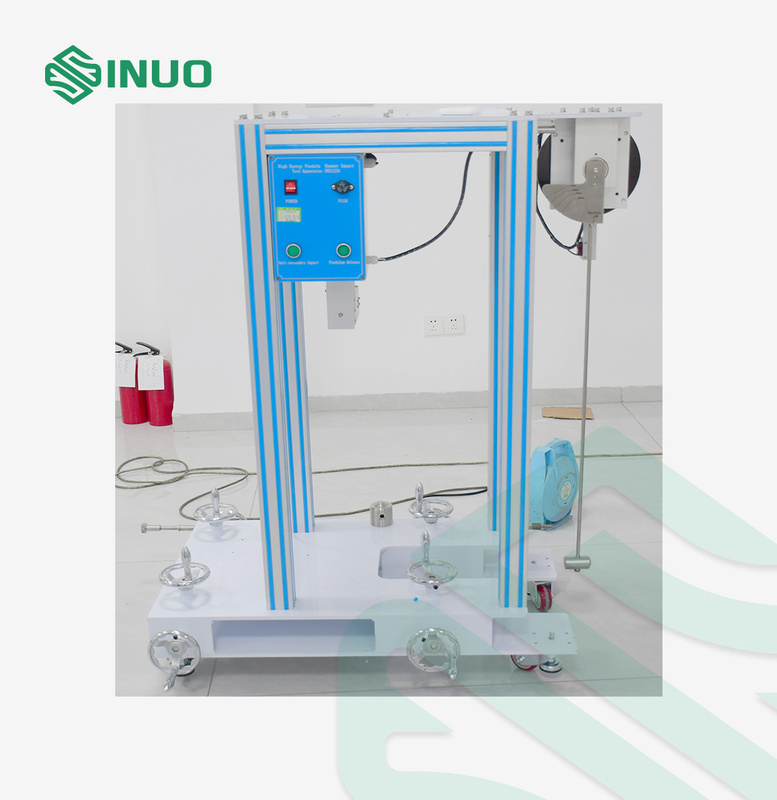

The high-energy pendulum impact test device adopts a trolley structure, can move

around left and right, the height of the upper and lower impact points is adjustable

through the screw guide, the impact angle is adjustable from 0 to 90°.

The striking element is free released at a certain height through a 1 m pendulum tube, impact the specimen at the lowest point in the vertical direction, after the conversion of gravitational potential energy to kinetic energy, to achieve the purpose of impact test on the sample.

Technical Parameters

Technical Parameters
Striking Elements (Energy/J)	Standard: 2J (IK07), 5J (IK08) 10J(IK09), 20J(IK10)
Equivalent Mass kg	500g,1.7kg ,5 kg,5 kg are for 2J,5J,10J,20J, please refer to following table 1
Striking Elements Material	Steel
Pendulum Tube	Length 1000㎜,outer diameter 15.9 mm, wall thickness 1.5 mm steel pipe
Impact Point	Can be electrically adjustable up and down, stroke: 0-1500mm

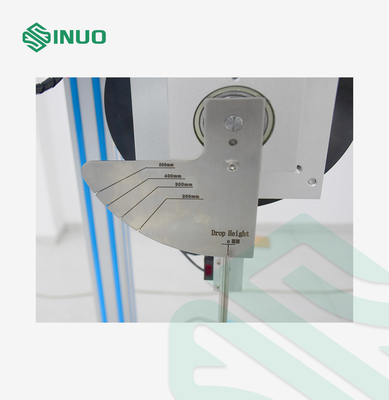

Height of Fall	0-500mm, scale display The height can be adjusted by handwheel
Lifting	Electrical mode

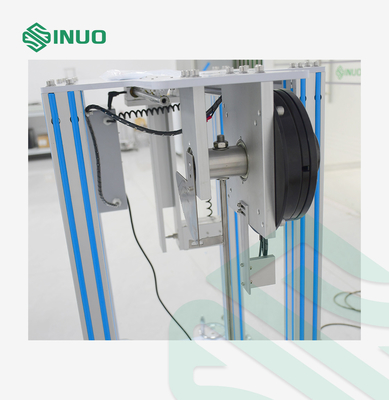

Impact element release method	Electromagnetic release
Base plate	Thicken load-bearing steel base plate
Way of moving	With casters, it can be moved to the position of the impact point of the sample
Anti-secondary impact function	Yes

Details

High Energy Pendulum Hammer Impact Test Apparatus For Charging Station 0
