Waterproof Testing Equipment IP Test Equipment IPX7 Immersion Test Chamber

Name: Waterproof Testing Equipment IP Test Equipment IPX7 Immersion Test Chamber
Brand: Sinuo Testing Equipment Co. , Limited
SKU: SN4410
Availability: InStock

Brand Name:	Sinuo
Model Number:	SN4410
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	30 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Chamber External Size:

W 860* D 860*H 1800mm

Chamber Inner Size:

L 800* W 800* H 1200mm

Max. Test Water Depth:

1.2m

Observation Window Width:

200mm

Test Content:

IPX7

Observation Window:

Tempered Glass (thickness: 12mm)

Inner Chamber Material:

2.0mm Thickness Stainless Steel

External Chamber Material:

Stainless Steel Plates + Aluminum Profile Frame

Packaging Details:

Plywood Case

Supply Ability:

30 sets/month

Product Description

Waterproof Testing Equipment IP Test Equipment IPX7 Immersion Test Chamber

Complied Standards & Clauses

IEC 60529 degree of protection provided by enclosures (IP Code) of the IPX7, IEC60884-1, IEC60598-1.

Equipment Overview

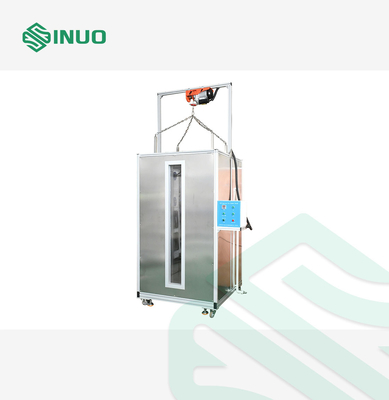

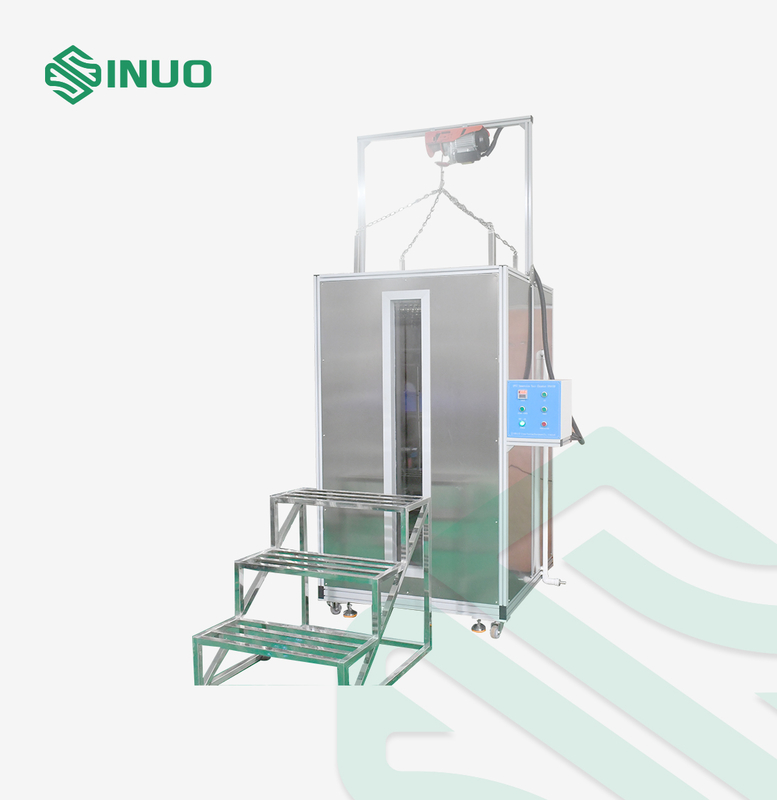

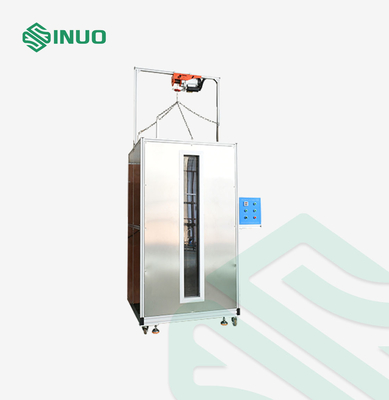

The IPX7 Immersion Test Chamber SN4410 is a precision-engineered waterproof testing solution designed for evaluating the ingress protection of products under temporary water immersion conditions. Built to comply with international standards such as IEC60529, IEC60335-1, IEC60884-1, and IEC60598-1, this chamber ensures your product meets IPX7 waterproofing requirements for both R&D and quality inspection.

Whether you're testing electrical appliances, lighting fixtures, automotive components, or sealed electronic enclosures, this chamber delivers consistent and accurate results. With its robust stainless-steel structure, electric lifting basket, and intuitive control panel, the SN4410 makes waterproof testing safe, efficient, and reliable.

Technical Parameters

Item	Specification
Model	SN4410
Standards	IEC60529 (IPX7), IEC60884-1, IEC60598-1
Application	Waterproof testing under immersion conditions (IPX7)
Chamber External Dimensions	Approx. 860 × 860 × 1800 mm (with casters)
Chamber Internal Dimensions	800 × 800 × 1200 mm
Maximum Water Depth	1.2 m
Observation Window	12 mm thick tempered glass, 200 mm wide
Water Level Adjustment	Manual, via inlet/drain valves
Water Level Display	Precision scale (accuracy: 1 mm)
External Material	Stainless steel + aluminum profile frame
Inner Chamber Material	2.0 mm thick stainless steel

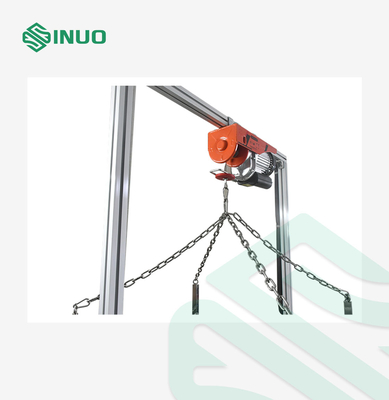

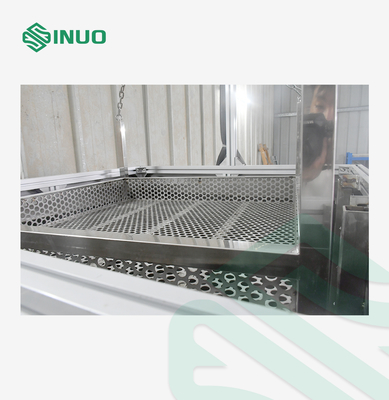

Test Basket	Electric hoist-operated stainless-steel lifting basket

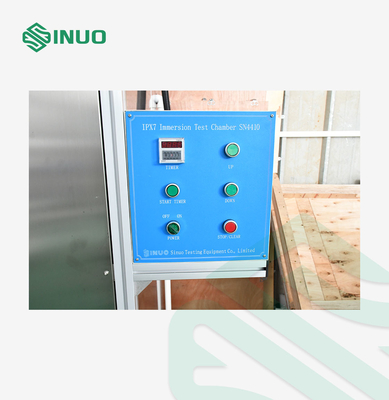

Control Method	Button control (non-PLC)
Test Time Setting Range	0.01 sec to 99.99 hours
Immersion Depth Compliance	Complies with IEC60529 IPX7 depth specifications
Power Supply	AC 220V, 50Hz, 1KW
