IEC 60529 Compliant IPX4 Waterproof Test Chamber for EV Charger Station with PLC-Based Control

IEC 60529 Compliant IPX4 Waterproof Test Chamber for EV Charger Station with PLC-Based Control

Brand Name:	Sinuo
Model Number:	SN448-3A
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	20 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Outer Diameter:

Ф102 Mm

Spherical Cap Diameter:

SФ75.5 Mm

Inner Two Rings:

24 Holes, 30° Spacing

Outer Four Rings:

96 Holes, 15° Spacing

Total Holes:

121

Hole Diameter:

Ф0.5 Mm

Flow Rate:

10 L/min ±5%

Pressure Gauge:

0–1 MPa

Packaging Details:

Plywood case

Supply Ability:

20 sets/month

Highlight:

IEC 60529 Compliant Waterproof Test Chamber

EV Charger Station Testing IPX4 Test Equipment

PLC-Based Control Water Ingress Testing Equipment

Product Description

IPX4 Waterproof Test Chamber for EV Charger Station

Compliant with IEC 60529 standards, this fully automatic waterproof test system is designed specifically for testing EV charging station enclosures against IPX4 water spray conditions.

Standards & Certifications

Designed and manufactured in accordance with:

IEC60529:2013 Degrees of Protection Provided by Enclosure (IP Code) – IPX4

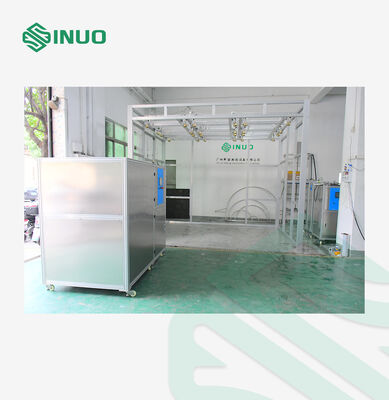

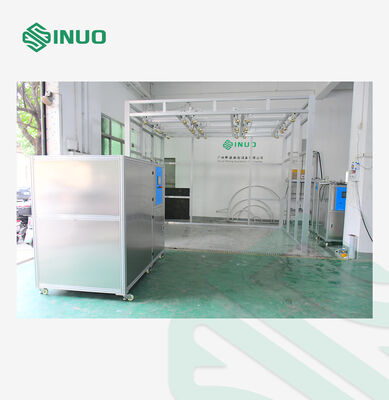

Equipment Overview

This system features PLC-based intelligent central control with touchscreen operation and parameter setting. The spray process is fully automatic with multiple standard nozzles (IEC60529 Fig. 5) arranged in a matrix layout. Adjustable spray angles enable comprehensive waterproof testing on charging stations of various specifications, making it ideal for third-party testing organizations and factory laboratories.

Technical Specifications

Item	Parameters
Power Supply	AC380V 50Hz, 15 kW, with leakage protection air switch
Sample Size	Standard: 9009002400 mm
Test Standard	IEC60529-2013, IPX4 rain test
Nozzle Parameters	Outer diameter: Ф102 mm Spherical cap diameter: SФ75.5 mm Center hole: 1 Inner two rings: 24 holes, 30° spacing Outer four rings: 96 holes, 15° spacing Total holes: 121 Hole diameter: Ф0.5 mm Material: Brass

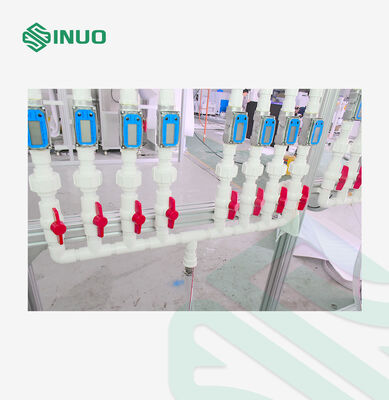

Flow Rate	10 L/min ±5% per nozzle, monitored by flowmeter Total flow rate can be set directly via touchscreen
Rainfall Distance	Minimum distance from nozzle to sample: 0.3–0.5 m (per standard)
Spray Direction	Nozzle angle manually adjustable to match sample surface

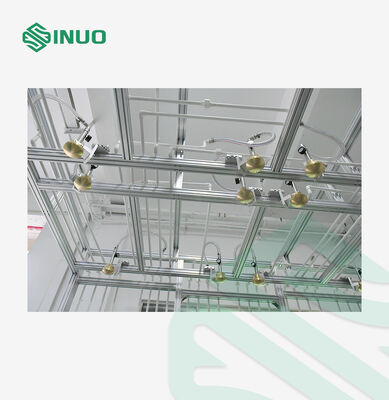

Nozzle Mounting	Nozzles arranged on top of chamber, tilted 45° downward (adjustable) 6 rows * 4 columns matrix layout
Pressure Gauge	0–1 MPa, displayable
Test Duration	0.01 s – 99.9 min, programmable
Water Supply System	Spraying water supplied from water tank via branded pump Water collected and recycled through circulation system Water circulation system constructed by user
Control System	Mitsubishi PLC with touchscreen interface and flowmeter display Test duration and total water flow settable via touchscreen Manual and automatic operation modes available
Leakage Recording	Manual inspection
Sample Handling	Sample loaded/unloaded via forklift
Safety Protection	Phase sequence protection, leakage protection, short circuit protection, abnormal operation protection
